Custom Die Casting, Coordinated
Reliable Die Casting, Managed from Tooling Through Finished Parts
HHX MFG coordinates qualified die casting resources, tooling, secondary CNC machining, finishing and quality control—so overseas teams have one accountable point of contact from drawing review through delivery.
- Aluminum & Magnesium Die Casting
- Tooling & DFM Coordination
- Secondary CNC Machining
- Quality & Delivery Oversight
Project risk management
Die Casting Projects Often Fail Between Processes
Porosity, tooling rework, dimensional variation and delivery delays are often caused by incomplete engineering reviews and disconnected suppliers.
Porosity and Leakage Risk
Risk: Internal porosity may cause leakage, weak structures or inconsistent performance.
HHX approach: We coordinate application review, tooling considerations, casting requirements and an inspection or testing plan appropriate for the project.
Tooling Rework and Delays
Risk: Incomplete DFM review can result in repeated mold modifications and additional cost.
HHX approach: Draft angles, wall thickness, parting lines, ejector locations, machining allowances and cosmetic zones are reviewed before tooling.
Casting and Machining Mismatch
Risk: Casting variation and incorrect machining datums can create dimensional and assembly problems.
HHX approach: Casting requirements, machining allowances, critical datums and inspection methods are reviewed as one manufacturing plan.
Too Many Separate Suppliers
Risk: Managing suppliers separately makes responsibility and delivery difficult to control.
HHX approach: HHX MFG coordinates the complete manufacturing chain through one project management contact.
Coordinated manufacturing
More Than a Die Casting Supplier
We coordinate the resources, processes and communication required to move complex die casting projects from drawing review to finished parts.
- 01Suitable Supplier MatchingWe match projects with suitable manufacturing resources according to alloy, geometry, size, volume and secondary operations.
- 02One Project Management TeamTooling, casting, CNC machining, finishing, inspection and delivery are coordinated through one HHX MFG project team.
- 03Engineering CoordinationWe consolidate DFM feedback and production requirements to identify manufacturing risks before tooling and production.
- 04Quality and Delivery Follow-upWe follow project milestones, quality requirements, corrective actions and delivery status throughout production.
Production may be completed through selected partner facilities, while HHX MFG remains responsible for project coordination, communication and delivery oversight.

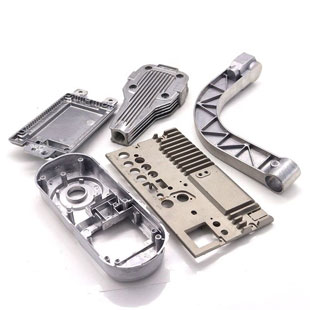

Custom Die Casting Capabilities

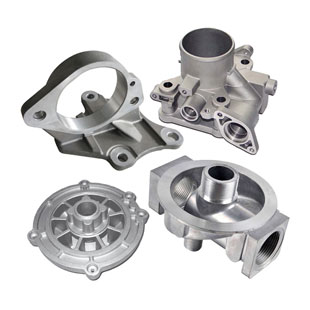

Aluminum Die Casting
Suitable for lightweight structural parts, equipment housings, heat-dissipation components and products requiring secondary CNC machining.
- Optical and electronic housings
- Compressor components
- Industrial equipment parts
- Communication equipment housings
- Automotive and mobility components
Magnesium Die Casting
Suitable for weight-sensitive components where a lightweight manufacturing route is appropriate after engineering review.
- Lightweight housings
- Portable equipment structures
- Optical device components
- Electronics enclosures
- Project-specific components
One Managed Process from Drawing to Delivery
Drawing Review
Review CAD files, alloy, quantity, cosmetic requirements and critical characteristics.
DFM & Supplier Matching
Evaluate manufacturability and select suitable tooling and casting resources.
Tooling Development
Coordinate mold design, manufacturing, review and trial preparation.
Die Casting Production
Coordinate trials, production requirements and issue follow-up.
Machining & Finishing
Manage CNC machining, deburring, finishing and required secondary operations.
Inspection & Delivery
Verify agreed inspection requirements, documentation, packaging and shipment.
Representative projects
Representative Die Casting Projects
Examples of how HHX MFG coordinates casting, machining, finishing and quality requirements for demanding components.
Project example

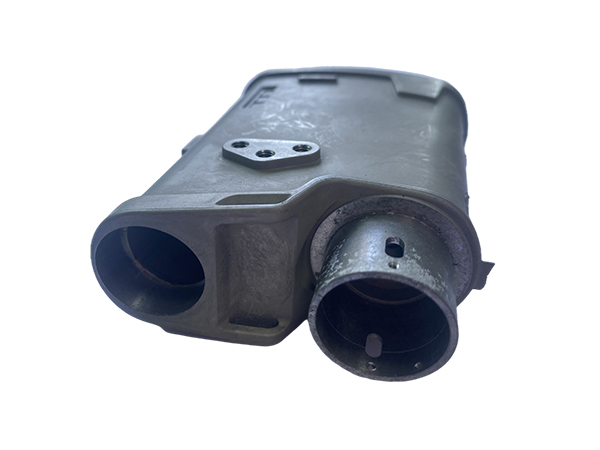

Die-Cast Night Vision Device Housing
- Product type
- Precision Equipment Housing
- Project need
- A protective metal housing requiring controlled geometry, reliable assembly interfaces, secondary machining and consistent cosmetic surfaces.
- Main challenges
- Complex housing geometry · Machined assembly interfaces · Surface appearance · Dimensional consistency
- HHX project support
- Coordinated DFM review, die casting production, secondary CNC machining, finishing and dimensional inspection as one managed workflow.
- Project result
- The manufacturing stages were coordinated to reduce communication gaps between casting, machining and surface finishing.
Project example
Die-Cast Compressor Cylinder Body
- Product type
- Functional Compressor Component
- Project need
- A functional cast component requiring stable interfaces, controlled secondary machining and consistent inspection.
- Main challenges
- Casting integrity · Machining datums · Functional interfaces · Dimensional stability
- HHX project support
- Coordinated manufacturing resource selection, tooling follow-up, casting production, machining requirements and inspection of agreed critical characteristics.
- Project result
- Casting and machining requirements were reviewed together to improve production coordination and downstream assembly consistency.
Quality Control Based on Your Part Requirements
Before Production
- Drawing review
- Critical dimension identification
- Cosmetic zone definition
- Inspection requirement confirmation
During Tooling and Trial
- Tooling milestone follow-up
- Trial part review
- Issue tracking
- Corrective action coordination
During Production
- Material documentation as agreed
- In-process inspection
- Machining feature control
- Surface appearance review
Before Shipment
- Final dimensional inspection
- Visual inspection
- Packaging verification
- Required quality documentation
Inspection methods and documentation are defined according to the drawing, application and agreed project requirements.
Have a Die Casting Part That Needs a Reliable Production Plan?
Upload your drawings and tell us about the alloy, volume, application and critical requirements. Our team will review the project and coordinate suitable manufacturing resources.
STEP, STP, IGES, X_T, SLDPRT, PDF and DWGFAQ
Die Casting FAQs
What information is required for a die casting quotation?
Please provide 2D drawings, 3D CAD files, preferred alloy, estimated annual volume, surface requirements, critical characteristics and application information when available.
Can HHX MFG manage tooling and production together?
Yes. HHX MFG can coordinate DFM review, tooling development, die casting production, secondary machining, finishing and inspection through one managed workflow.
Do you provide secondary CNC machining for die-cast parts?
Secondary CNC machining can be coordinated for sealing surfaces, threaded holes, bearing locations, assembly interfaces and other critical features.
How do you control porosity and leakage risks?
Risk control begins with application review, component design, tooling considerations, casting process planning and an inspection or testing plan appropriate for the project.
Does HHX MFG own every factory used for production?
HHX MFG works with selected manufacturing resources according to project needs. We coordinate supplier matching, production follow-up, quality requirements and delivery management for the customer.
